Using the Production Power Grid

The Production PowerGrid allows you to interact with all production entries--filtering them by date, project, task, etc.

1. From the Homescreen, click on the Resource option in the left navigation.

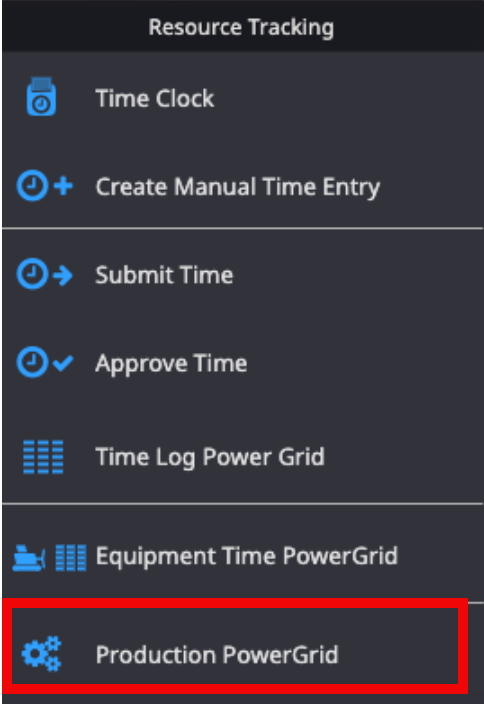

2. The Resources menu opens. Select the Production PowerGrid option.

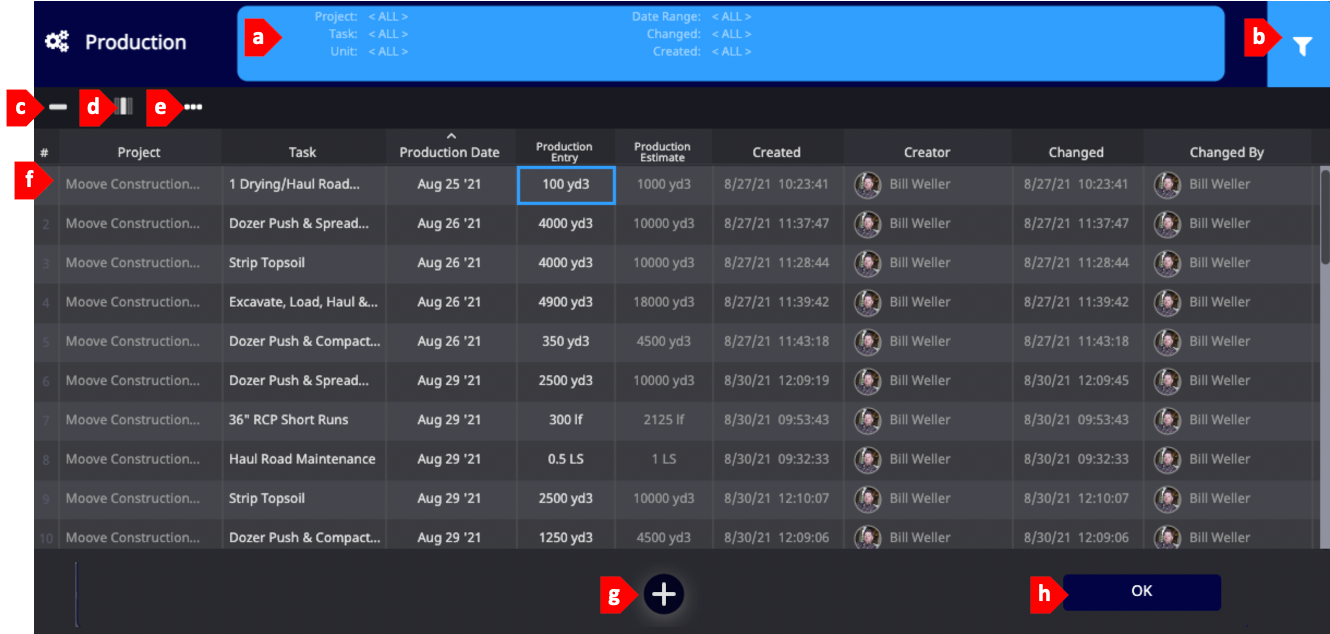

3. The Production PowerGrid opens displaying the following features:



   a.	Filter Panel: Displays any filter criteria applied to the data set. Production entries may be filtered by project, task, unit, date range, date changed, and date created. This panel can be clicked on to open the Filter dialogue.

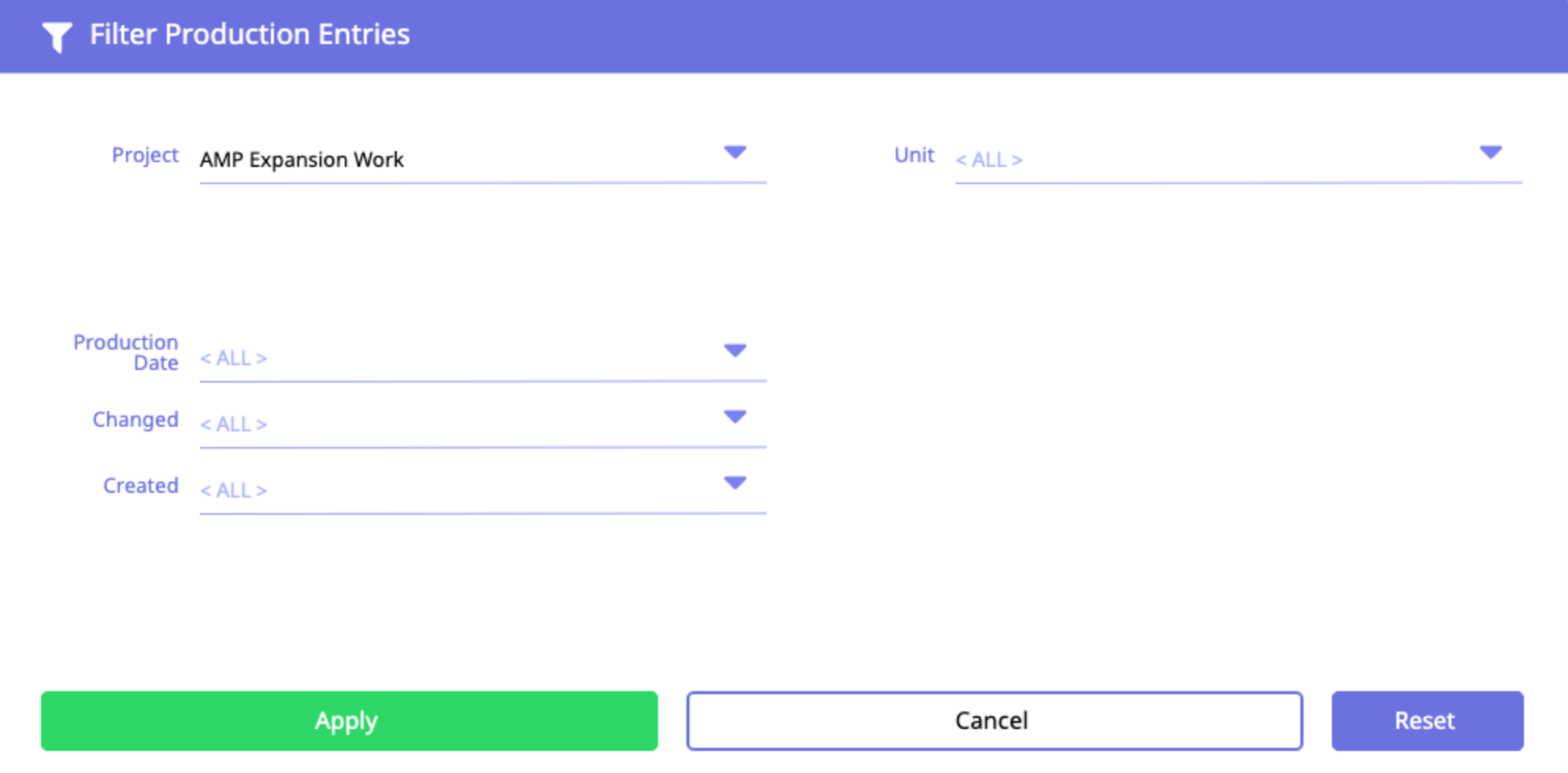

   b.	Filter: Click this button to open the Filter dialogue to limit the data displayed, or to reset/remove applied filters.

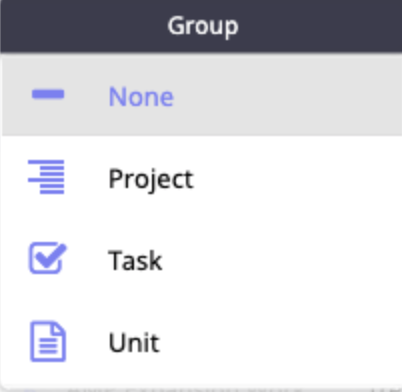

   c.	Group: Click the Group icon to sort data by project, task, or unit.

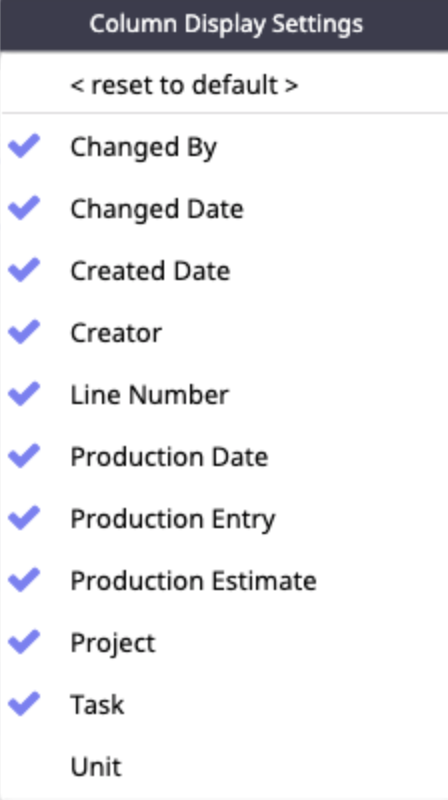

   d.	Column Headers: Click the Column Headers icon to add or remove data points from the PowerGrid's display. Columns may also be reordered in the PowerGrid by dragging and dropping them to their new position.

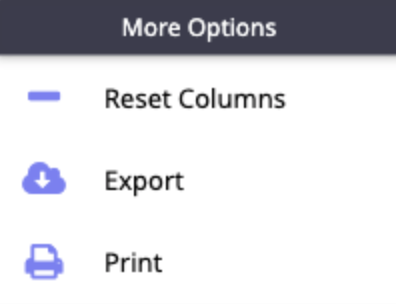

   e.	More Options: Click this icon to find the ability to reset column width, export the Production PowerGrid to a .csv file, or print to a PDF file.
   f.	Production Record: Each record displaying in the Production PowerGrid is an entry of progress against a task. Data regarding who made the entry, when it was made, if any changes were made to the entry, and what project the task is associated with are also captured.

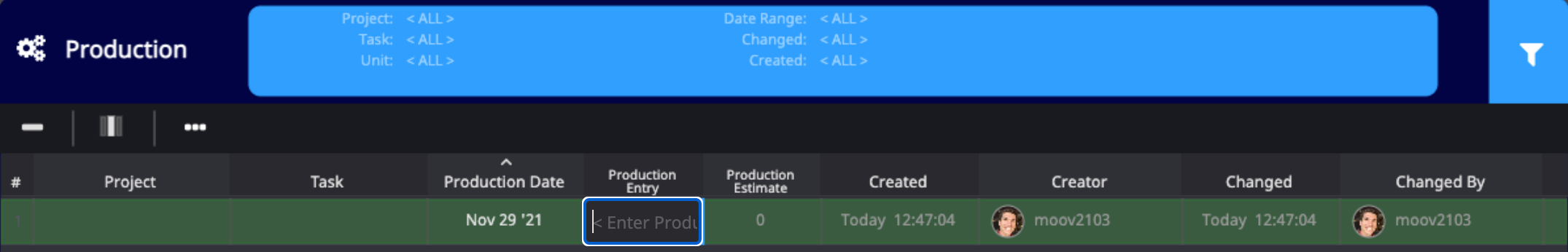

   g.	Add: Clicking the Add button adds a new line to the Production Power Grid for entry of production details. Type in all relevant information and click Save to keep entries or Cancel to discard them.
   h.	OK: Click this button to close the Production PowerGrid.
