Using the Equipment Log Power Grid

The Equipment Log Power Grid allows you to interact with all equipment time entries--filtering them by date, project, task, etc.

1. From the Homescreen, click on the Resource option in the left navigation.

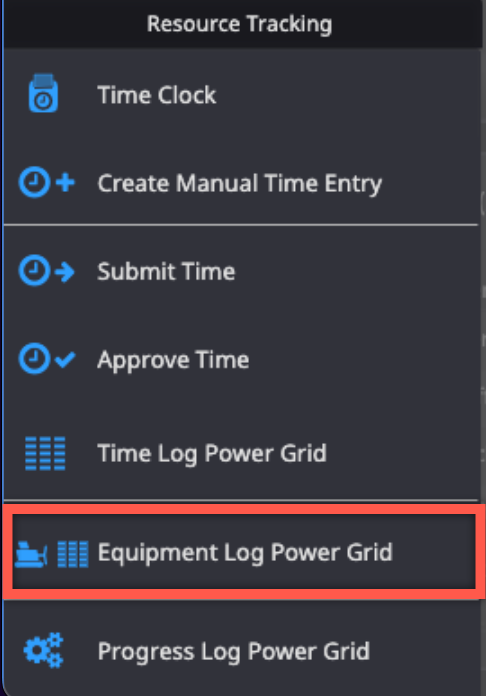

2. The Resource Tracking menu opens. Select the Equipment Log Power Grid option.

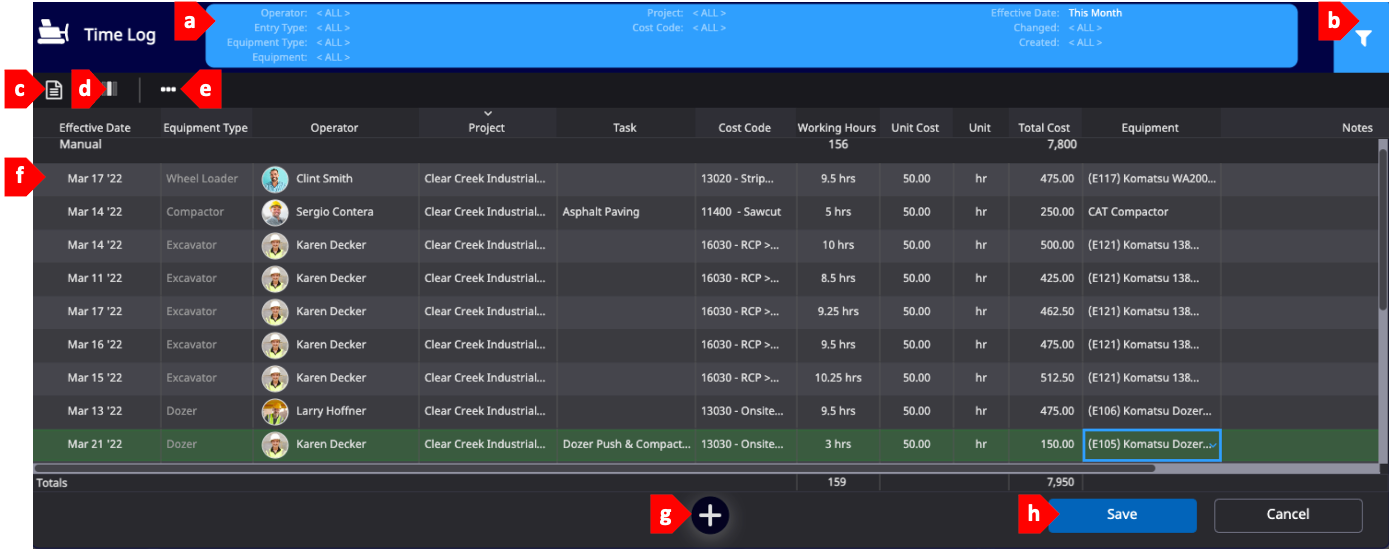

3. The Equipment Log Power Grid opens displaying the following features:



   a.	Filter Panel: Displays any filter criteria applied to the data set. Equipment entries may be filtered by operator, equipment type, equipment, entry type, project, cost code, effective date, changed date, and/or date created. This panel can be clicked on to open the Filter dialogue.

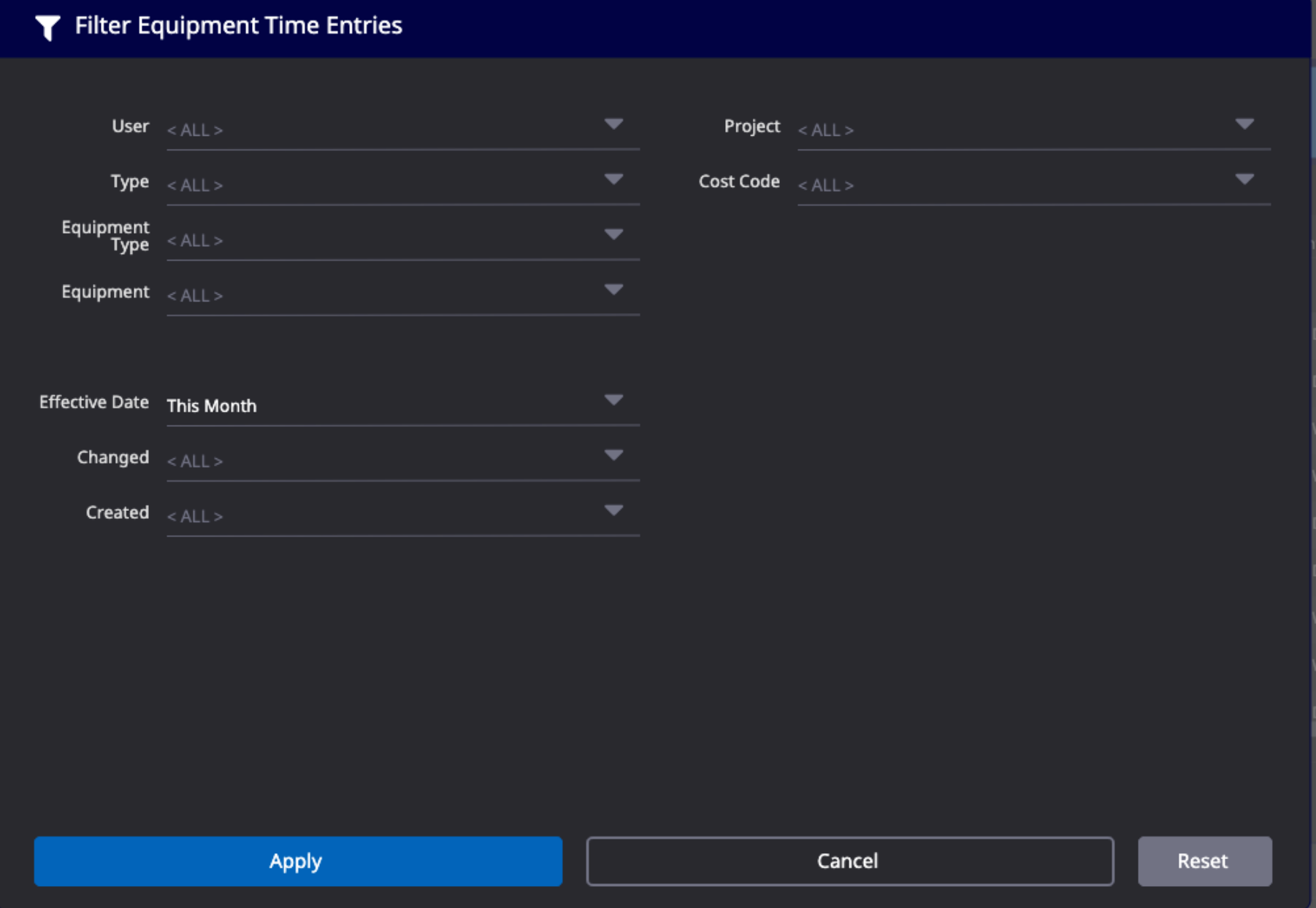

   b.	Filter: Click this button to open the Filter dialogue to limit the data displayed, or to reset/remove applied filters.

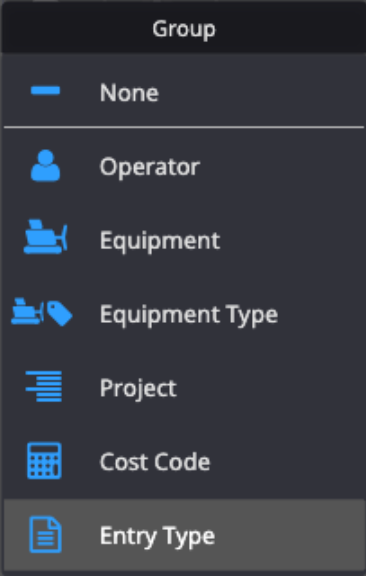

   c.	Group: Click the Group icon to sort data by operator, equipment, equipment type, project, cost code or entry type.

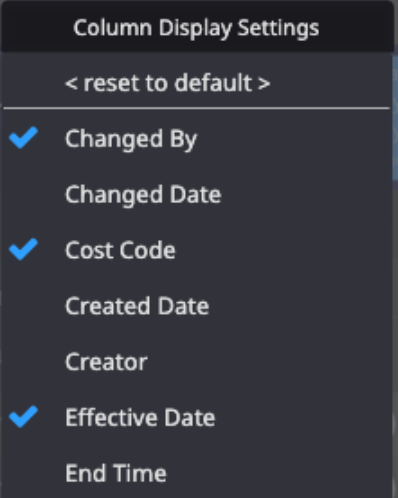

   d.	Column Display Settings: Click to open the dropdown menu and choose which column headers are displayed. Once added to the Power Grid they can be resized or dragged and dropped to change their display order. The option will return the column headers to their original state.

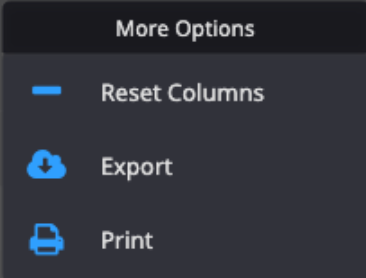

   e.	More Options: Click to open this dropdown menu, accessing the following options: *Reset Columns: Returns column widths to their original settings. *Export: Downloads an .xls export of the data inthe Power Grid. *Print: Prints the data in the Power Grid to a .PDF format.
   f.	Add an Equipment Time Entry: Click this "+" button to add a manual equipment time entry to the Equipment Time Log. Learn more about adding manual time entries here.
   g.	OK / Save: The Equipment Log Power Grid works in the same manner of other Power Grids in Office, and data can be edited in the same way it is in a spreadsheet (with the exception of time associated with standard time entries). For any changes made in the Power Grid to be saved, click OK.
